Build & PublishBeta

Run the real Anypoint CLI lifecycle from the browser — build, publish to Exchange, deploy, and tear down.

Build & Publish runs the real Anypoint CLI Agent Fabric lifecycle against your own Anypoint org — building, publishing to Exchange, deploying, and tearing down — except the CLI runs on a hosted worker, not your laptop. It's the "deploy to CloudHub" step, in the browser.

What Build & Publish does

You hand it an Agent Network project — your current Builder draft, an uploaded .zip, or a picked folder — and it runs the genuine anypoint-cli-v4 with the agent-fabric plugin. It authenticates as you (your signed-in token), so your Anypoint roles govern every outcome. Progress streams back live.

The CLI runs as your user via your access token — so "can I publish here?" is answered by your own Anypoint role grants, exactly as if you ran the CLI yourself.

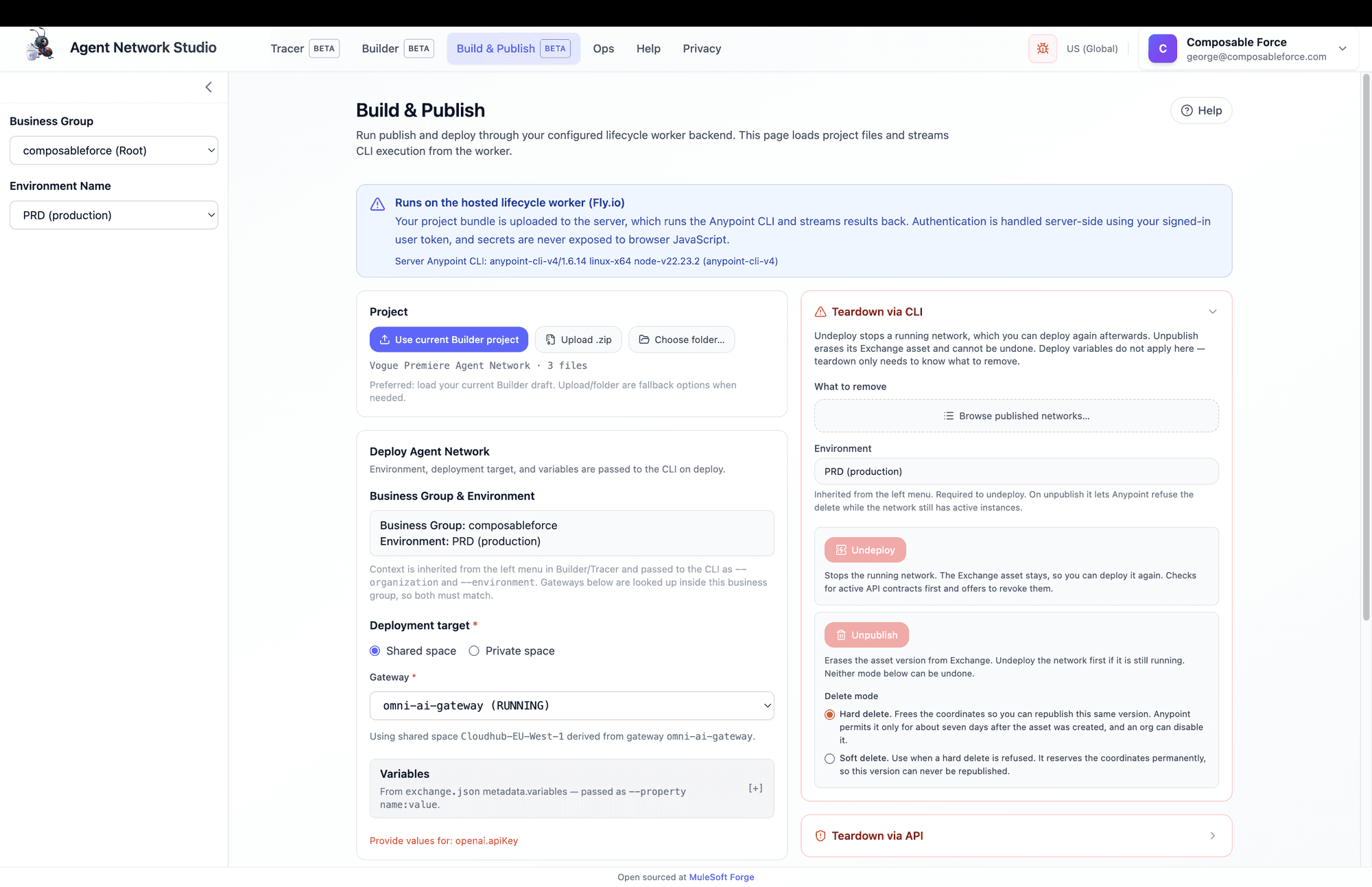

Build & Publish panel with a loaded project and lifecycle actions — The Build & Publish workflow — load a project, set deploy options, then Publish or Deploy.

The pipeline model

The UI offers Publish, Deploy, and Publish & Deploy, plus teardown. There's no standalone Build button on purpose — publish and deploy each chain a build first, because the build artifacts they need live in a fresh workspace that's deleted after the job:

Publish → build → publish assets to Exchange.
Deploy → build → deploy to your environment and gateway.
Publish & Deploy → a single deploy job that includes build and any required publish.

Publish & Deploy is one job

Publish is implicit inside it. Don't run Publish first and then Publish & Deploy — you'll double-publish. Pick one path.

Jobs stream over SSE with a live log and a structured Activity view. They never retry(a failure is final until you resubmit), and logs expire after 24 hours. A Cancel button is always in reach; cancelling wins over the exit code.

Business group & environment

This is the #1 orientation gotcha

Business group and environment are not fields in the deploy form. They live in the left sidebar and are inherited (shared with Builder and Tracer). They're passed to the CLI as --organization and --environment, and gateways are looked up inside that business group — so both must match. Nothing enables until both are set.

The org id is resolved to a name from your profile, and an id you aren't a member of is rejected outright rather than silently falling back to your root org.

Loading a project

Three load paths, in order of preference:

1
Use current Builder project
The primary path. Enabled when a non-empty Builder draft exists in this browser session.
2
Upload .zip
A fallback — a zipped project bundle. A wrapping folder is detected and stripped automatically.
3
Choose folder…
Chromium-only (File System Access API). Other browsers see only zip upload.

exchange.json must sit at the bundle root. A Builder project already serializes correctly; for zips/folders the wrapper is handled for you.

Deployment target

The model is shared space vs private space, not a CloudHub/RTF toggle:

Shared space — pick one gateway. The CLI derives the shared space itself at deploy time (mirroring Anypoint Code Builder). Shared spaces use the Cloudhub-prefix in Runtime Manager.
Private space — pick a private space, plus an ingressand egress gateway. This maps to a CloudHub 2.0 private space / Runtime Fabric target.

Gateways and spaces are looked up live from Gateway Manager and Runtime Manager for the selected environment.

Variables & secrets

The Variables section is derived from your project's exchange.json metadata.variables, grouped by key prefix (e.g. openaiLlm.baseUrl → groupopenaiLlm). Each becomes a --property name:value flag. Non-secret values seed from their defaults; each group shows a complete or N missing badge.

Secrets are re-entered every session

Secret variables (your LLM API key, etc.) are never persisted — you must re-enter them each session. Deploy is blocked until every secret has a value. Deploy variables also don't apply to teardown.

Publish & Deploy

With a project loaded and deploy options complete, the action tiles enable. Each tile spells out its chained stages, and the blocking reason appears as a tooltip while it's disabled.

Reading the activity

Activity view — structured steps: run start, deployment progress (Starting → Waiting → Ready), endpoints, errors, outcome.
CLI output view — the raw stream, secrets redacted.
Parsed summary — published assets as assetId vX.Y.Z with clickable Exchange links, plus any error codes.

A healthy publish or deploy finishes in a couple of minutes. Timeouts are generous (build 4m, publish 6m, deploy 5m, undeploy 15m) — hitting one usually means something is genuinely wedged, not slow.

Teardown

A separate, red-bordered card — because these actions remove things and one of them is irreversible. Targets are picker-only (chosen from live Exchange), so you can't fat-finger a GAV onto the wrong version.

Undeploy — stops the running network; the Exchange asset survives, so you can deploy again. Requires an environment. Runs a pre-flight check for active API contracts and offers to revoke them (Anypoint refuses to remove an instance with an approved contract).
Unpublish — erases the asset version from Exchange. Irreversible.

Hard vs soft delete is asymmetric

Hard delete (the default) frees the coordinates so you can republish the same version — but Anypoint only permits it ~7 days after asset creation, and an org can disable it. Soft delete reserves the coordinates permanently: that version number can never be republished. Soft is the more dangerous default, which is why it isn't the default here.

The right order: undeploy before unpublish, and expect to revoke contracts first.

Reading a failure

When a job fails, a diagnosis dialog pops up: a plain-language explanation, error-code chips, and a numbered "How to fix" list. On a failed deploy, Build & Publish also automatically fetches the deployment's Runtime Manager logs and shows them inline — because a deploy rarely hangs at random; the app was usually created but never went healthy.

The diagnosis catalog is the same one documented on the Troubleshootingpage — every rule there (target locked, unreachable connections, permission denied, timed out, and the rest) is what this dialog is matching against.

Gotchas

There is no Build button — Publish and Deploy each chain a build.
Business group and environment live in the left sidebar, not the form.
The deployment target locks after the first successful deploy. Changing gateway/space later throws a wall of 3025 errors whose real cause is a single 400 — delete the deployment in Runtime Manager first. See the fix.
A deploy timeout rarely means "retry" — read the auto-fetched RM log.
Brokers must reach their connections at deploy time — deploy the MCP server (or other endpoint) first, on the same gateway/space.
Secret variables reset every session; jobs never retry; logs expire after 24h.
"Choose folder…" is Chromium-only.
Ignore the setup landing copy if you ever see it — when the worker is enabled, your bundle is uploaded to the hosted worker (over your authenticated session); the marketing landing page says otherwise and is stale.
